Jaw Couplings
Up to 55 kNm of torque and 200 mm bore diameters.
The GAS coupling is a compact elastomeric coupling consisting of two fully turned steel hubs (UNI EN 10083/98) and a central elastomeric element (spider). The hub’s jaw profile is designed to ensure the elastomeric element works solely in compression and not in shear, ensuring a long service life even in high-reversal or high-load applications. The elastomer ensures:
- Absorption of shocks and vibrations;
- Compensation for unavoidable misalignment between shafts;
- Silent operation during transmission.
The basic GAS/SG series consists of modular components that can be assembled to achieve the ideal configuration for the application:
- Hub 1 (M1): Standard hub for any type of connection;
- Long Hub 1 (M1L): Extended hub for connecting long shafts;
- Hub 2 (M2): Hub with reduced outer diameter for assembly in confined spaces.
Backlash free jaw coupling «in steel» "GAS/SG-ST"
- Manufactured from fully turned steel with standard phosphating treatment;
- Various elastomer hardnesses available;
- High torsional rigidity;
- Electrical isolation between components;
- Statically balanced;
- Version with integrated locking assemblies available (GAS/SG/CCE).
- ATEX compliance available;
- Specific surface treatments or fully stainless steel version;
- Customized manufacturing for specific requirements;
- Integration with the Torque Limiter (safety coupling) range.

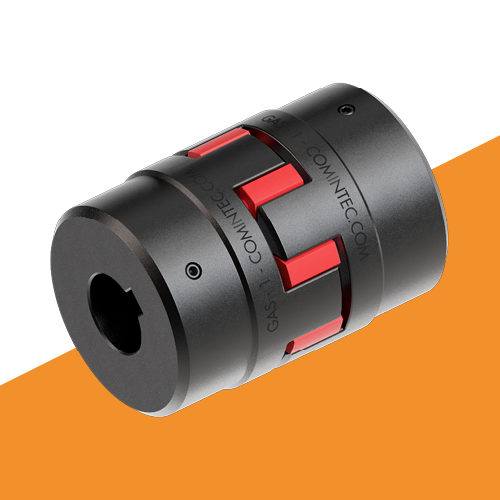

Standard jaw coupling «in steel» "GAS-ST"
- Manufactured from fully turned steel with standard phosphating treatment;
- Various elastomer hardnesses available;
- High misalignment compensation;
- Vibration dampening;
- Statically balanced;
- Modular components with various assembly options.
- ATEX compliance available;
- Specific surface treatments or fully stainless steel version;
- Custom lengths and manufacturing for specific needs;
- Integration with the Torque Limiter (safety coupling) range.

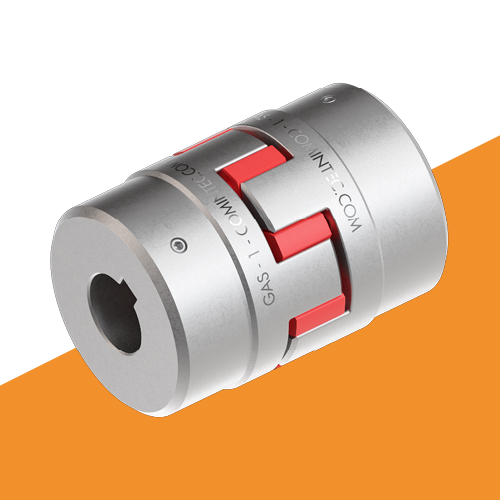

Backlash free and standard jaw coupling «in alluminium» "GAS/SG-AL" and "GAS-AL"
- Manufactured from fully turned aluminum;
- High torsional stiffness;
- Elastomers available in different hardnesses;
- Reduced weight and inertia;
- Electrical isolation between components;
- Statically balanced;
- Modular components with different hub locking systems.
- Single split clamp hub with H7 bore and keyway (Type B1);
- Two-piece clamp hub with H7 bore and keyway (Type C1);
- ATEX compliance available;
- Customized manufacturing for specific requirements.

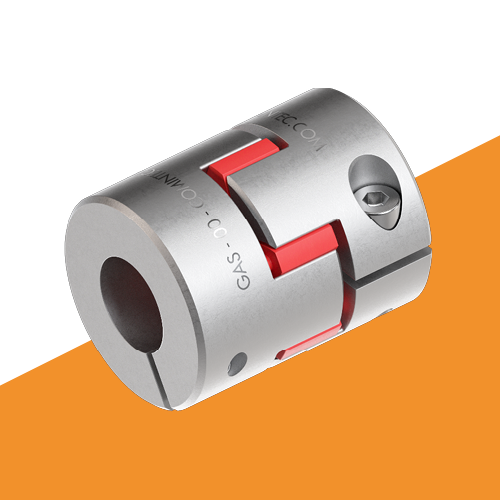

COMPACT «aluminium» zero play jaw coupling "GAS/SG/C-AL"
- Compact solution;
- Manufactured from fully turned aluminum;
- Backlash-free model for high torsional rigidity;
- Elastomers available in different hardnesses;
- Reduced weight and inertia;
- Electrical isolation between components.
- Single split clamp hub with H7 bore and keyway (Type B1);
- Customized manufacturing for specific requirements.
