Rollers torque limiter

Up to 12 kNm of torque and 120 mm bore diameters.

Home › Products › Torque limiters › Rollers torque limiter

A safety coupling featuring roller-based motion transmission. It allows for complete disengagement when the set torque is reached, permitting a quick transmission stop via the EM1 microswitch. Suitable for transmitting high torque with high reliability in a compact size.

  • Precise torque setting via adjustment of the radially balanced locking nut;
  • Innovative nominal torque regulation based on the “H” dimension allows for immediate calibration;
  • Equidistant (multi-position) or 360° synchronous re-engagement;
  • Compatible with electromechanical switches or proximity sensors for transmission disconnection;
  • Immediate intervention offering superior reaction time compared to electronic systems;
  • Maintenance-free for long-lasting high reliability;
  • Suitable for oily and wet environments.
  • Supplied complete with machined and assembled transmission elements (plate wheel, pulley, gear pair);
  • Helical springs available for low torque settings;
  • Connection options include bore and keyway, or locking assemblies;
  • Customized phase re-engagement angles available (36°, 45°, 60°, 90°, 120°, etc.).
  • Packaging and wrapping machines;
  • Labeling machines;
  • Bottling machines;
  • Conveyors.
  • Protects the gearbox from jamming caused by foreign objects;
  • Prevents package crushing and deformation;
  • Protects product handling elements from accumulation/jams;
  • Maintains synchronization between driving and driven components after an overload (360° version).
Contacts
Download Area
Limitatore coppia rulli DSR

Rollers torque limiter "DSR"

  • Basic model, suitable for in-line shaft connections;
  • Equipped with helical springs for higher sensitivity in torque setting: …/CM Version;
  •  Available with an extended hub/shaft for mounting large transmission elements: …/ML;
  • Available with corrosion-resistant surface treatments;
  • Available with a signal ring for sensor activation;
  • Torque range: 2.5 – 12,000 Nm; Max. bore: ø120 mm.
Configurator
PDF
instruction sheets

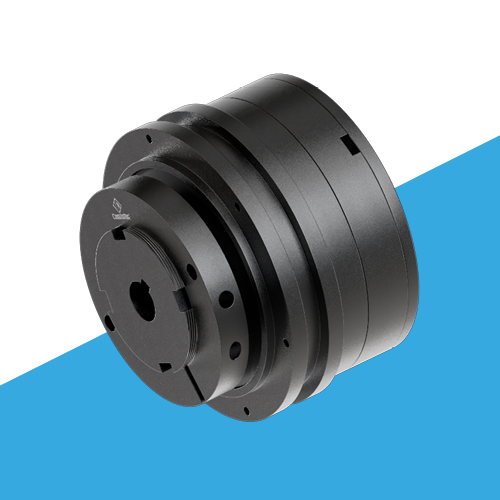

Limitatore coppia rulli DSR/FS

Version with supporting flange "DSR/FS"

  • Basic model with flange for parallel shaft installations;
  • Equipped with helical springs for higher sensitivity in torque setting: …/FS/CM;
  • Available with corrosion-resistant surface treatments;
  • Flange designed for reduced axial dimensions: …/FIR;
  • Flange designed for cardan shaft/universal joint connection: …/FAV;
  • Torque range: 2.5 – 12,000 Nm; Max. bore: ø120 mm.
Configurator
PDF

Electromechanical switch "EM"

  • Die-cast aluminum housing;
  • Protection rating IP57 (DIN 40050);
  • Available with 1 contact (EM1) or 2 contacts (EM2);
  • Adjustable lever end position;
  • Operating temperature range: -10°C to +85°C;
  • Voltage input options: 1.5A – 250 VAC; 5A – 24 VDC; 0.2A – 250 VDC;
  • Pre-travel: 0.7 mm
  • Over-travel: 4 ÷ 8 mm depending on setting (adjustable range of 6 mm).
